PS KJD12 ON/OFF Switch KJD12 10 A & P1 BASE

ON/OFF SWITCH KJD12 10 A & FACEPLATE

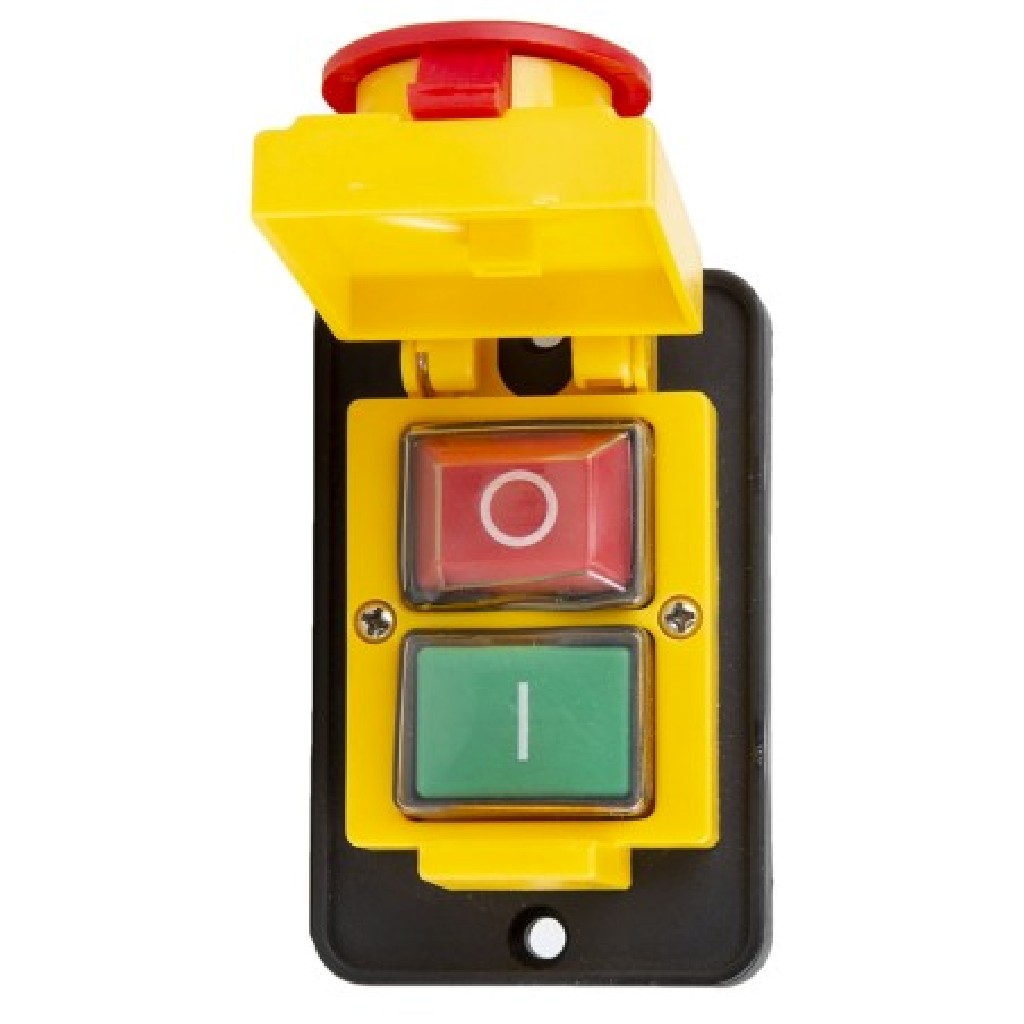

The KJD12 230V switch is one of the most commonly used on small woodworking machines. it will be suitable for induction motors up to 1.5hp drawing up to 10 amps. Simply connect using insulated spade terminals, the connections being clearly marked for input and output. It is a no-volt-release type of switch, providing safety in the event of an interruption of power. . Fitted with a dust cover and having positive action push buttons plus a large, red self locking Emergency Stop hinging cover

It has 4 terminals.

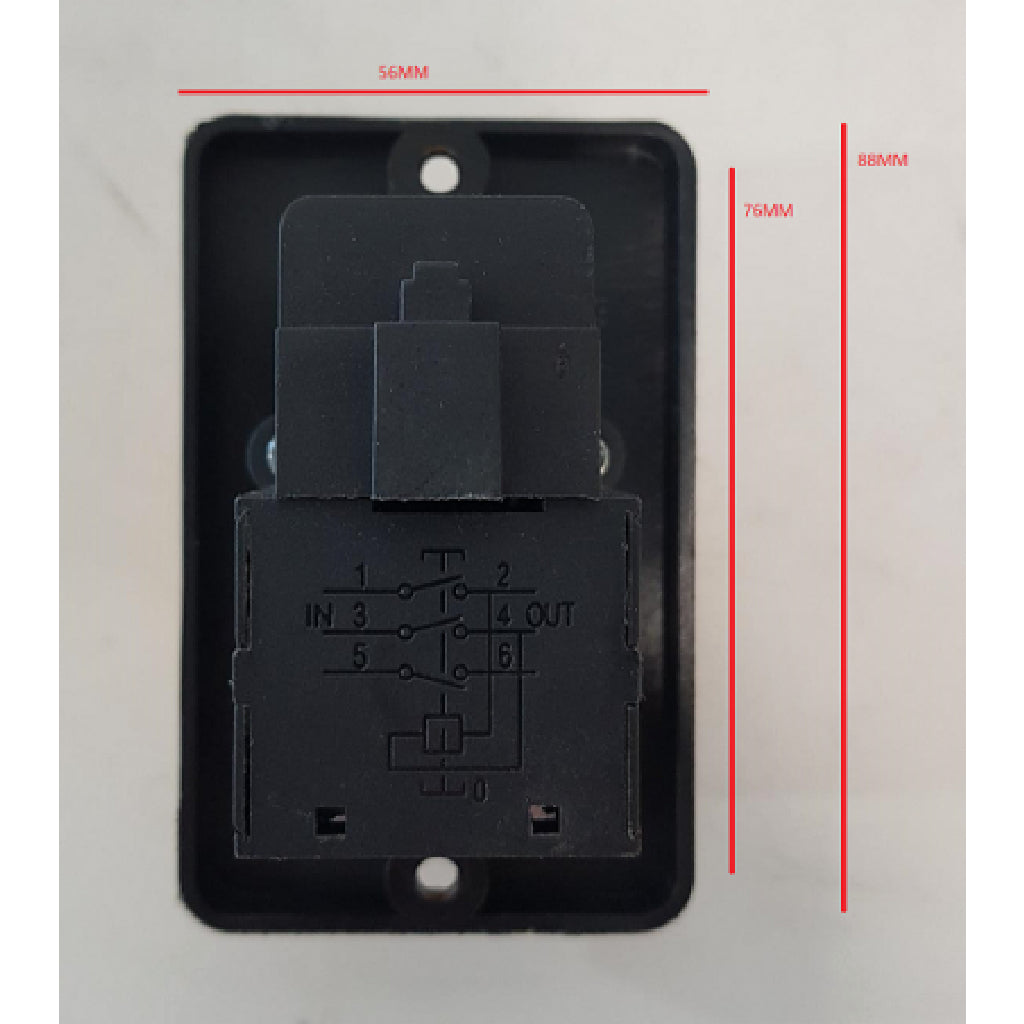

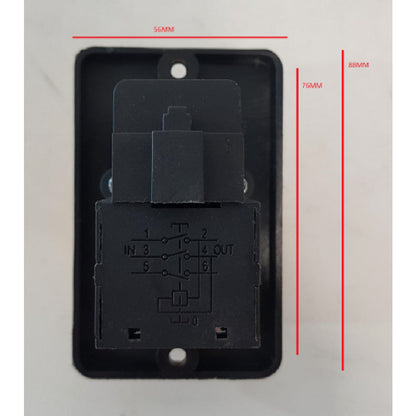

Dimensions of black mounting plate  88mm x 56mm
Depth behind mounting plate 35mm

Requires a rectangular hole approximately 40 x 60mm, the switch being secured by 2 mounting bolts (not supplied)

The KEDU KJD12 switch is compatible with CK-5 , KJD22 , DKLD-6-2/4T & KJD18/4T.
