PT20N-SPIRAL 20in Thicknesser Spiral Cutterhead Single Phase 3750W 5HP

PT20N-SPIRAL 20in Thicknesser Spiral Cutterhead Single Phase 3750W 5HP

SKU:PT20N-SPIRAL

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Tax included.

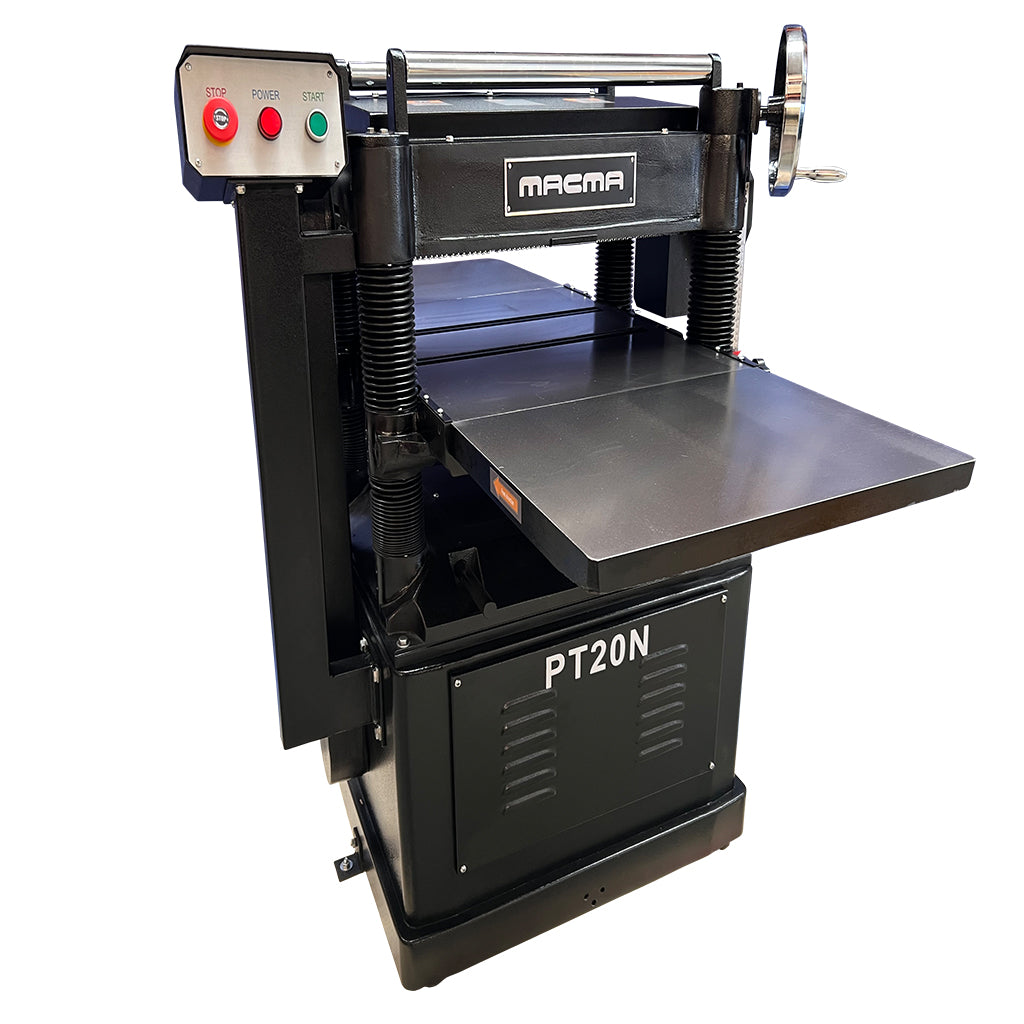

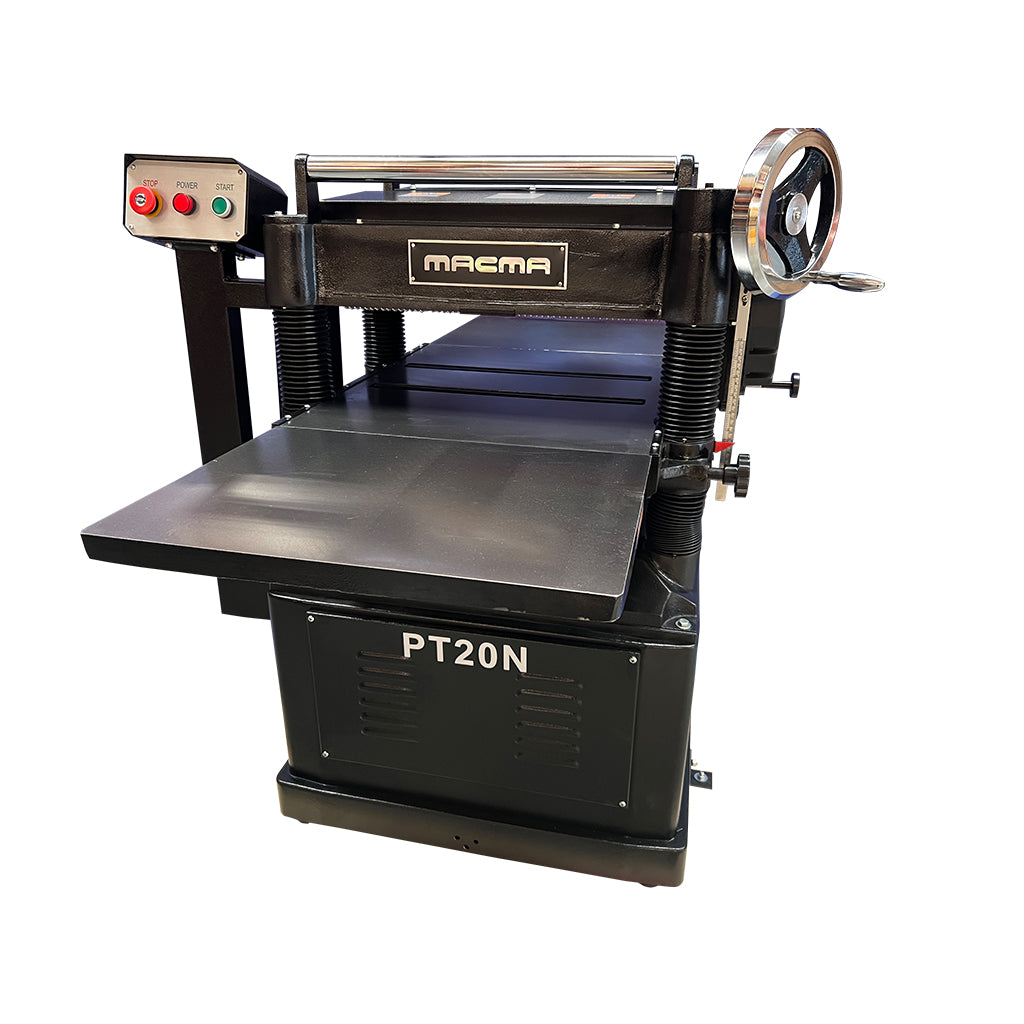

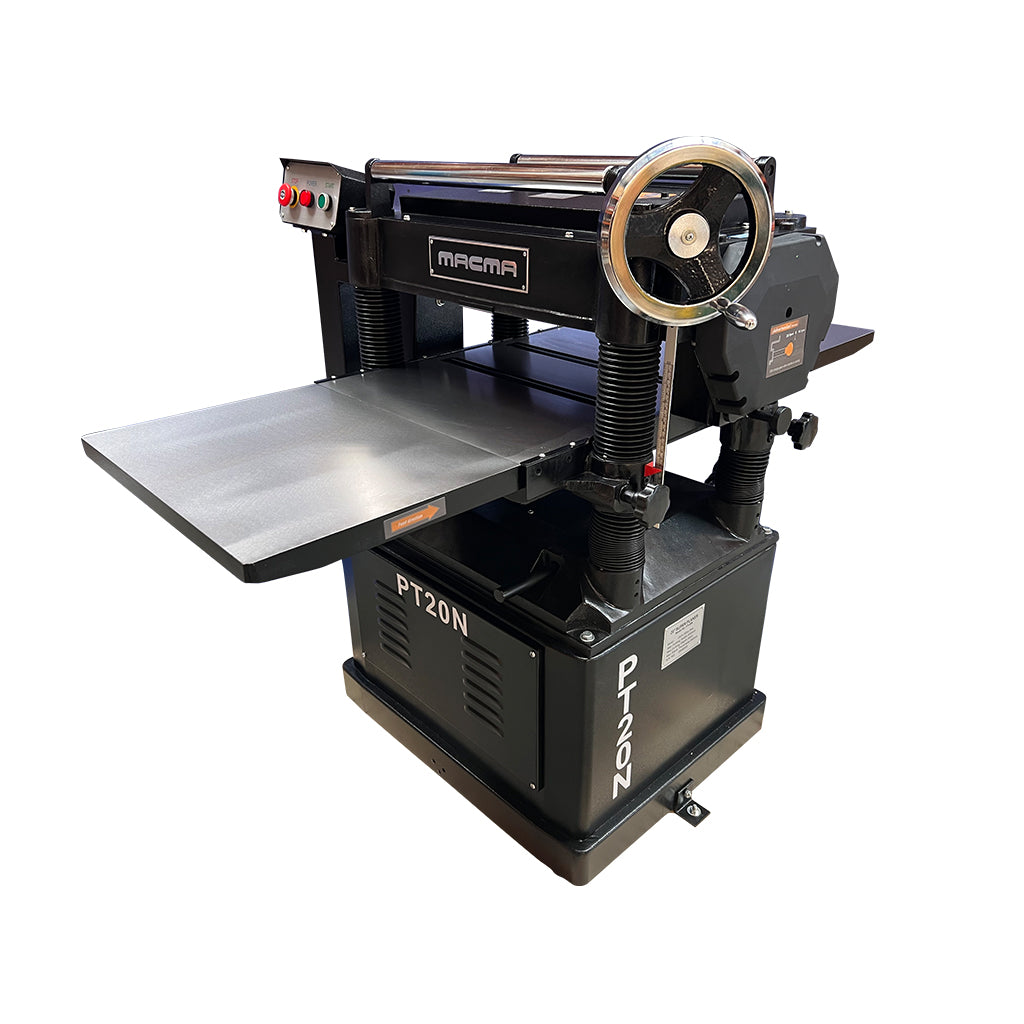

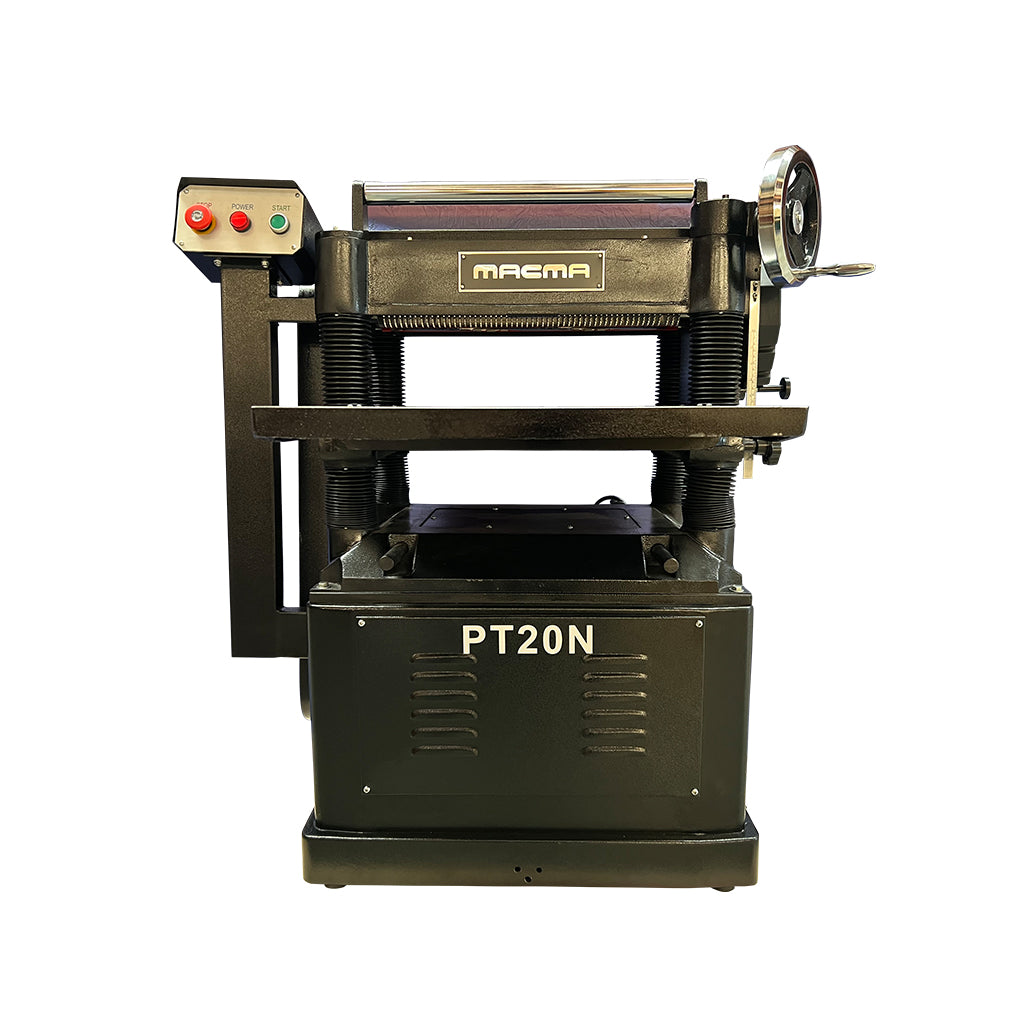

Macma 20" Planer Thicknesser – Heavy-Duty Cast Iron with Spiral Cutter & Two-Speed Gearbox

Engineered for serious woodworking performance, this 20-inch Planer Thicknesser combines raw power, precision engineering, and long-lasting durability. Built on a solid cast iron foundation, it delivers vibration-free operation and exceptional finish quality, even under heavy workloads. More Power - The massive 5hp motor delivers outstanding power to deal with the most challenging of hard woods. The motor, which runs a triple-belt pulley system to the cutterhead, is matched with a 2 speed gearbox to adjust your feed rate - slow feed rate for a better finished surface, and fast feed rate for rapid dimensioning.

Key Features:

Robust 5HP Motor ( 3750W 5HP - 240V 20A circuit required) – Provides ample power for smooth, consistent cutting through the toughest hardwoods.

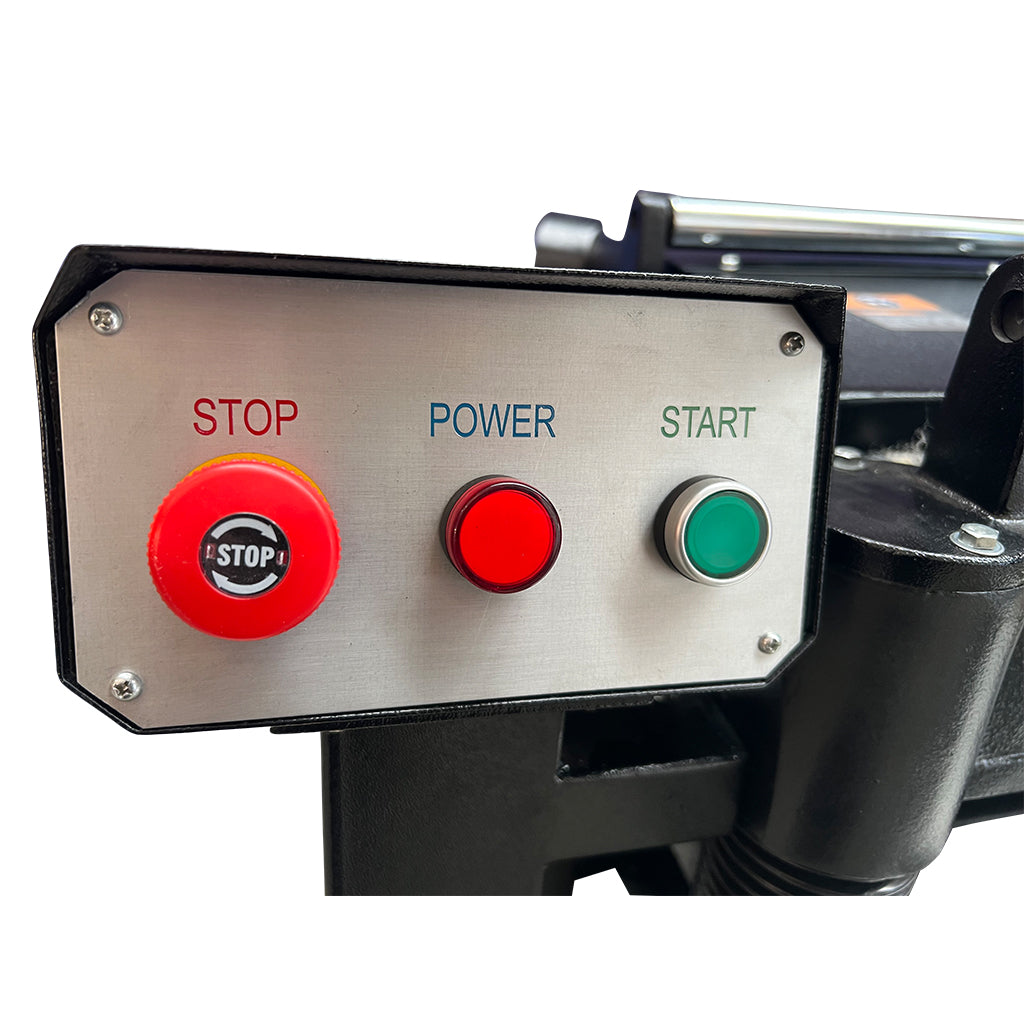

Switch Arm - Features upgraded switch on sturdy steel arm that contains power cord, the clear switch display has a quick stop function and magnetic no-volt release switch.

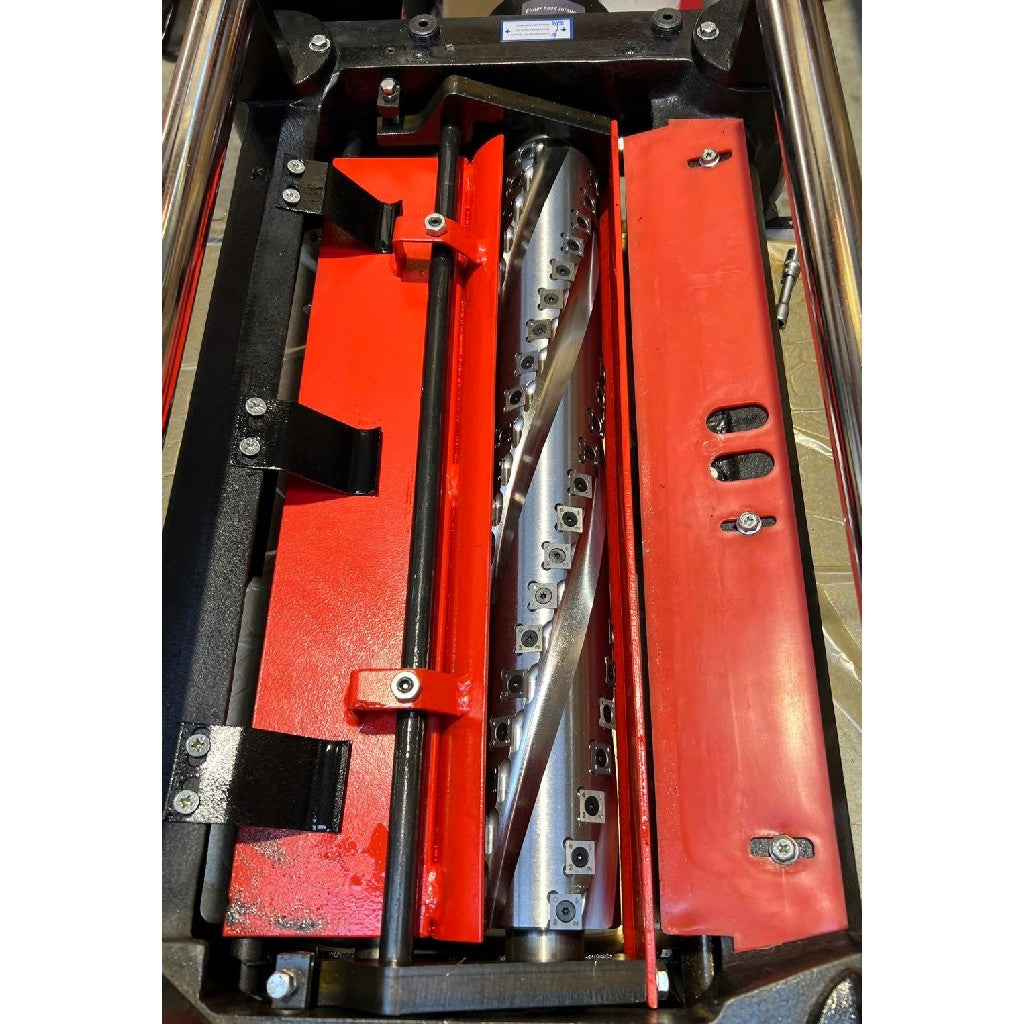

Spiral Cutterhead – Fitted with multiple precision-ground carbide inserts for a quieter cut, superior finish, and easier blade changes.

Two-Speed Gearbox – Switch between feed rates to optimise for either rough stock removal or ultra-smooth finishing passes.

Solid Cast Iron Tables – Precision-ground infeed and outfeed tables ensure flat, accurate stock support and reduce snipe.

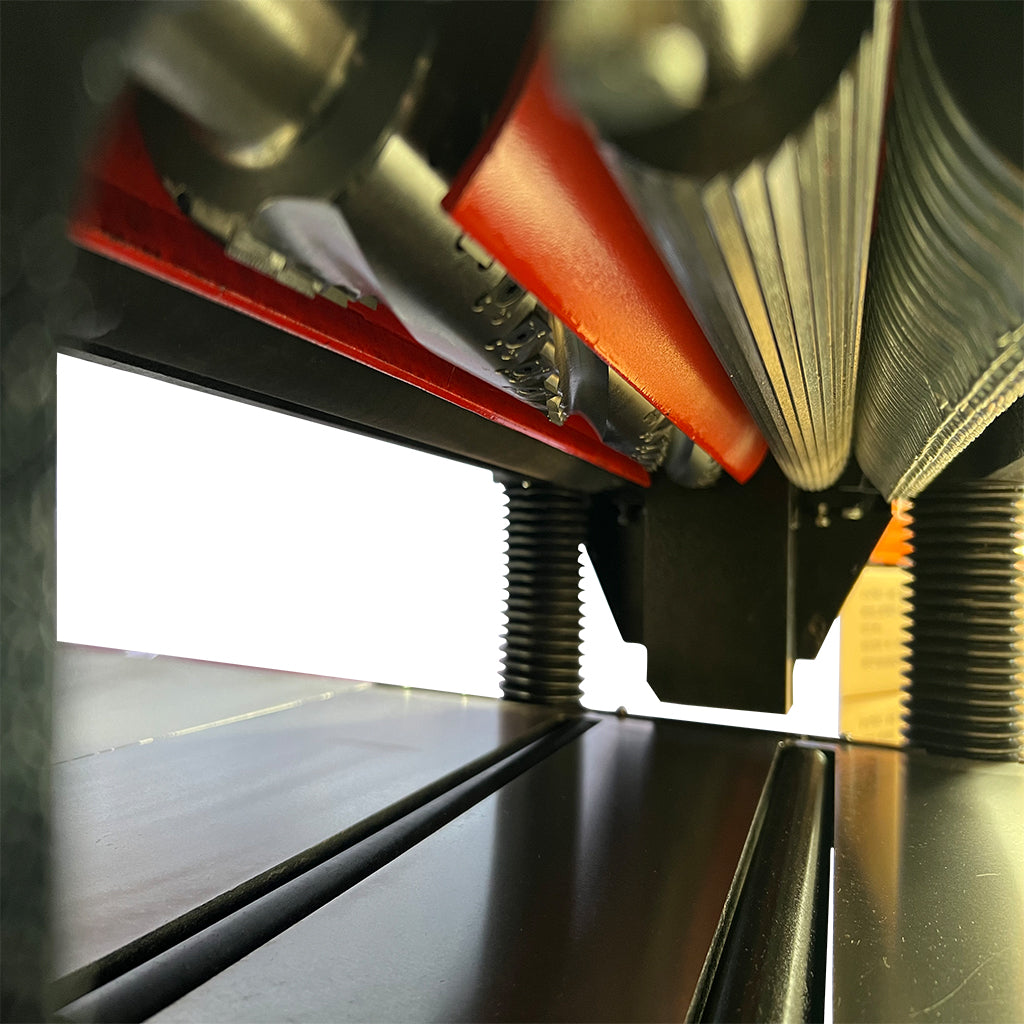

Serrated Steel Infeed Roller – Offers a positive grip on rough-sawn timber for reliable feeding.

100mm Dust Extraction Port – Connects to your dust collection system to maintain a clean, safe working environment.

Heavy-duty construction for years of trouble-free service in demanding workshop conditions. Whether you’re dimensioning rough timber or bringing fine hardwoods to a silky finish, this 20" Planer Thicknesser delivers industrial-grade performance in a single, space-saving machine. Perfect for cabinetmakers, joiners, and serious woodworking enthusiasts.

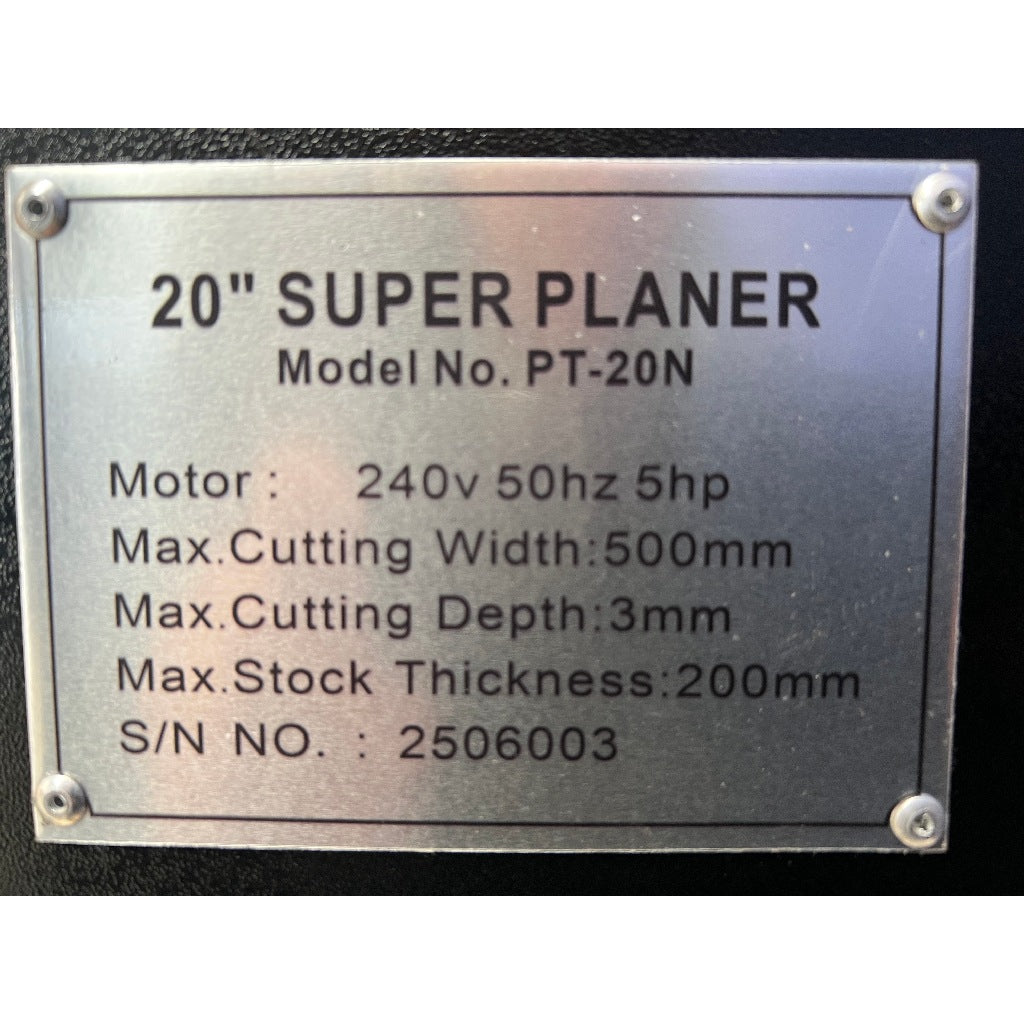

Specifications

Motor Size                         3750W 5HP - 240V (20A circuit required)  Induction

No. of Belts                        3

Cutterhead speed              5000rpm

No. Blades (Spiral head)   84

Min Stock Thickness         3mm

Max Planing Capacity       508 x 203mm

Planer Bead Size               510x655mm

Feeding rollers                  Infeed Serrated steel, Outfeed Polyurethane

Planer feed speed              5mpm & 6.5mpm

Dimensions                        L1430mmxW1050mmxH1150mm  Weight N.W. 328kg
