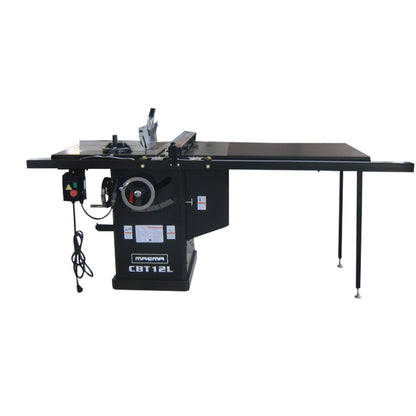

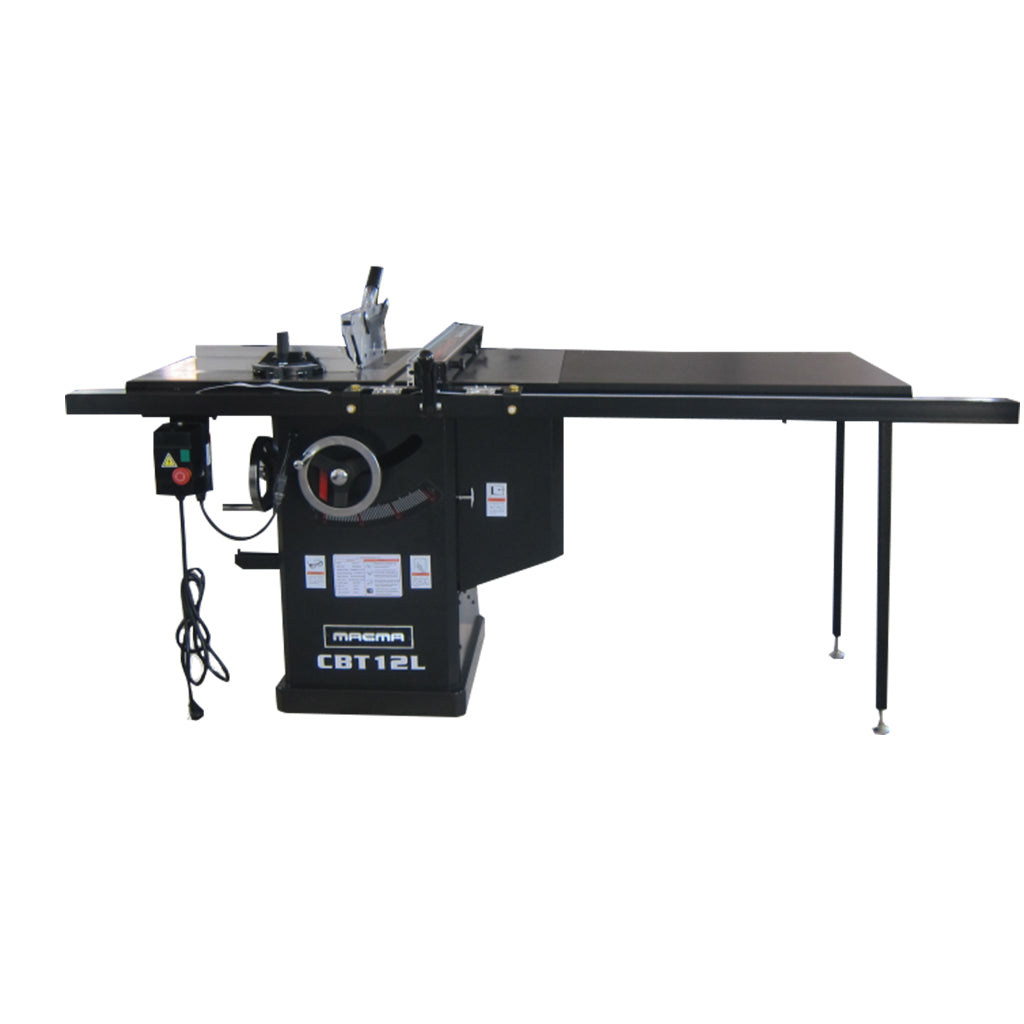

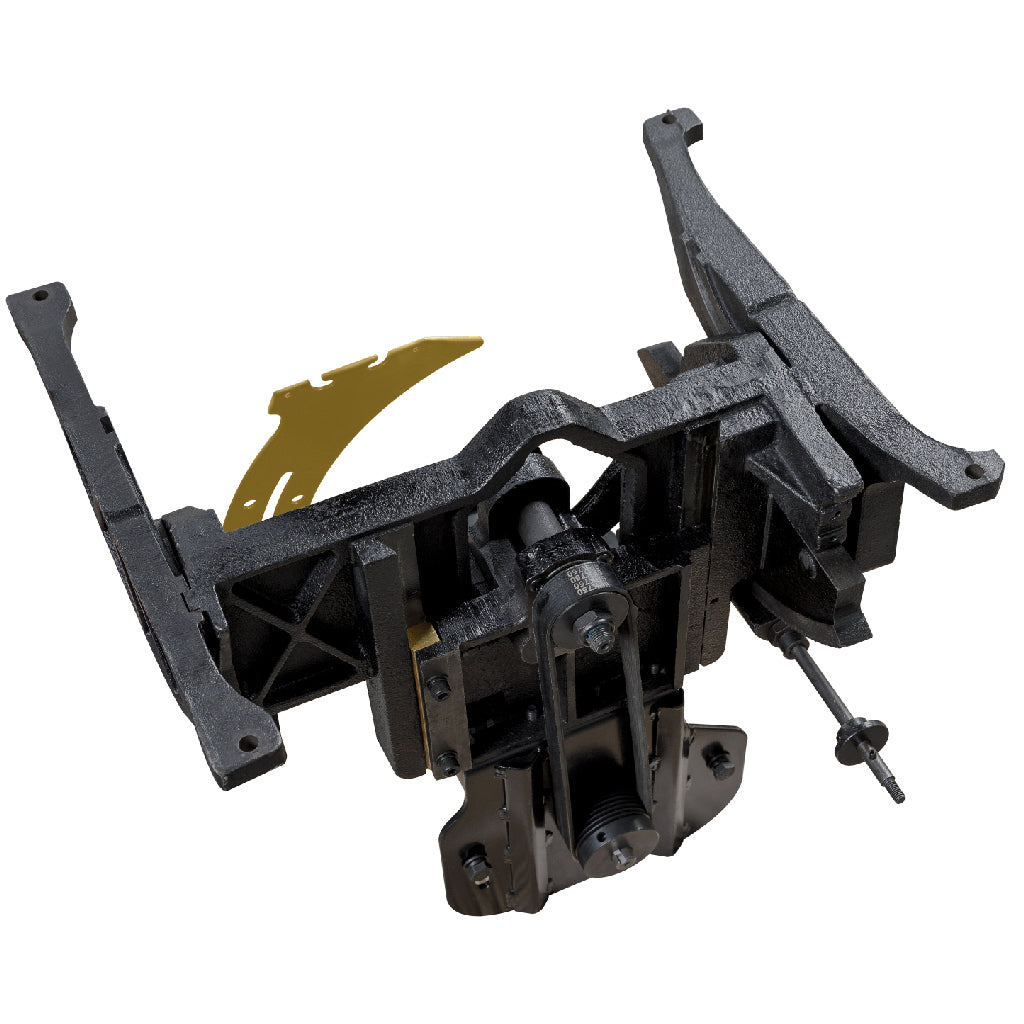

TS CBT12L 50" This 12" 4Hp saw features state-of-art design and engineering, precision ground and chamfered cast iron work tables, heavy duty dovetail trunnion lifting system and high performance poly-belt drive. The cabinet encased trunnion drive system makes this Saw very stable and completely eliminates Vibration. Radiant looks and finish, exceptional accuracy and stability, smooth operation and user-friendly features. Designed for use with dado system and tenon jig.
Technical Details
30”/50”
Main Table
508x686mm
Blade Diameter
305mm (12inch)
Motor TEFC
3kw/4HP
Spindle Speed
3550rpm
Arbor Tilt
Left 45deg
Max Cut at 0deg
100mm
Max Cut at 45deg
70mm
Max. rip cut (blade right)
750mm/1270mm
Max. rip cut (blade left)
305mm
Dado Diameter
203x15.87mm
Dado Max. Width
20.6mm
Arbor Size
25.4mm
T Slots (2)
19.05*9.5mm
Dust Port
100mm
Drive Belt
6pk765
Switch
Magnetic no Volt + Emergency Stop With overload Safety
