TS CBT12S 4hp 12in Cabinet Table Saw 30"
TS CBT12S 4hp 12in Cabinet Table Saw 30"
SKU:
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Tax included.
Couldn't load pickup availability

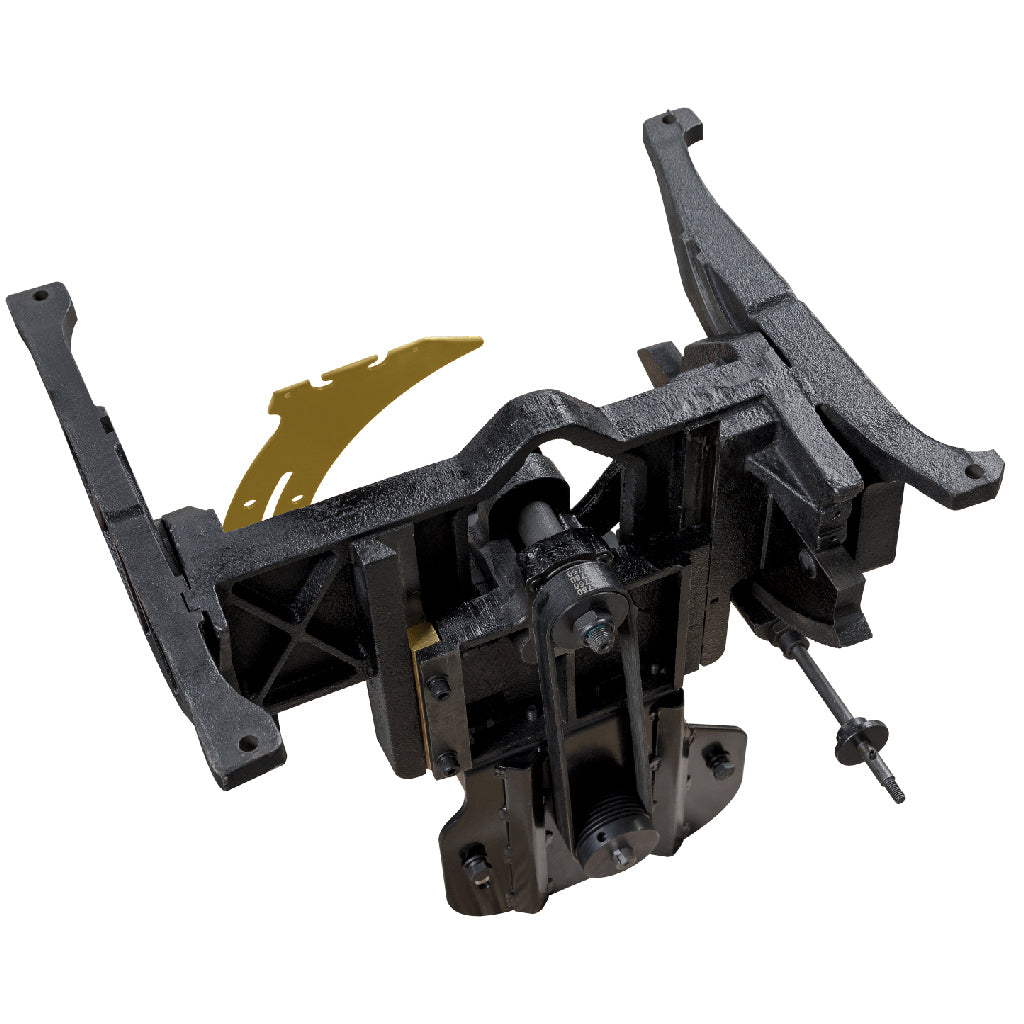

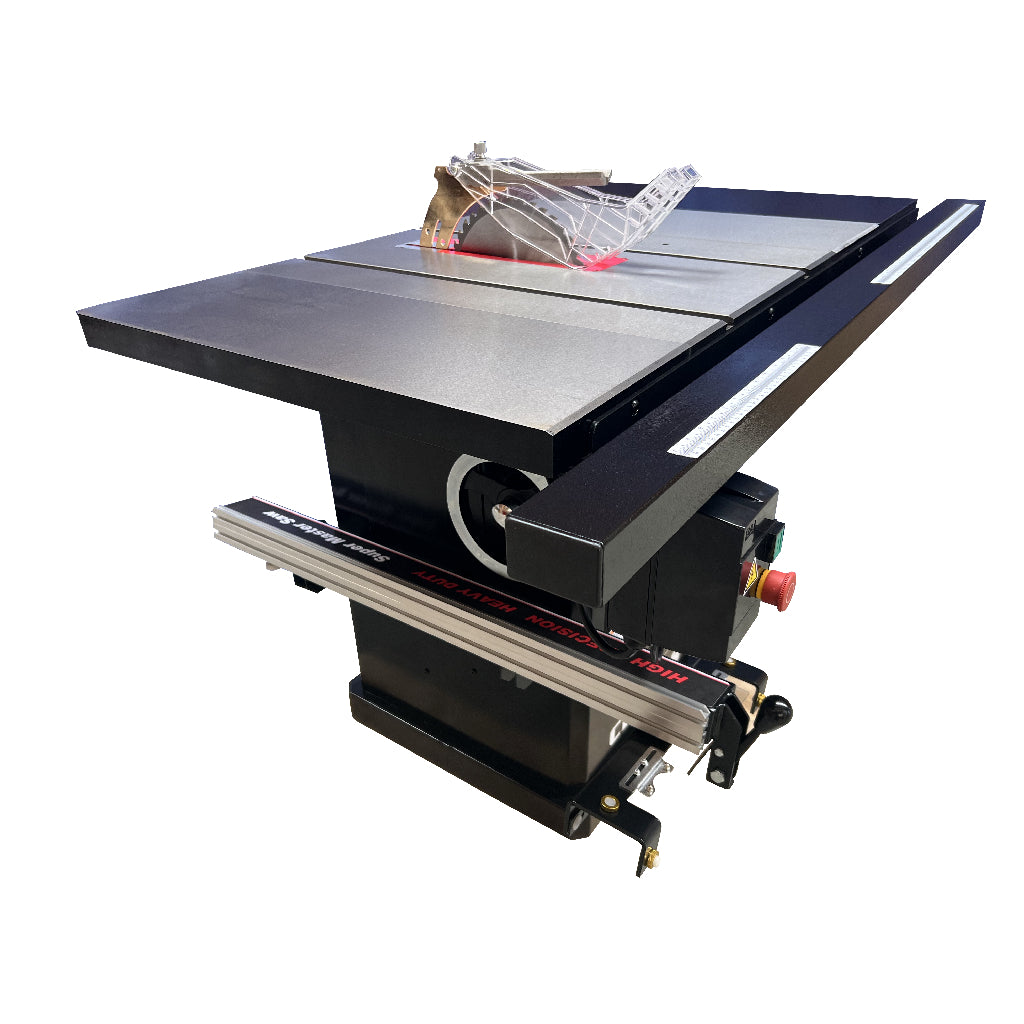

TS CBT12S This 12" 4Hp saw features state-of-art design and engineering, precision ground and chamfered cast iron work tables, heavy duty dovetail trunnion lifting system and high performance poly-belt drive. The cabinet encased trunnion drive system makes this Saw very stable and completely eliminates Vibration. Radiant looks and finish, exceptional accuracy and stability, smooth operation and user-friendly features. Designed for use with dado system and tenon jig.
| Technical Details 12" | 30”/50” |
| Main Table | 508x686mm |
| Blade Diameter | 305mm (12inch) |
| Motor TEFC | 3kw/4HP |
| Spindle Speed | 3550rpm |
| Arbor Tilt | Left 45deg |
| Max Cut at 0deg | 100mm |
| Max Cut at 45deg | 70mm |
| Max. rip cut (blade right) | 750mm/1270mm |
| Max. rip cut (blade left) | 305mm |
| Dado Diameter | 203x15.87mm |
| Dado Max. Width | 20.6mm |
| Arbor Size | 25.4mm |
| T Slots (2) | 19.05*9.5mm |
| Dust Port | 100mm |
| Drive Belt | 6pk765 |

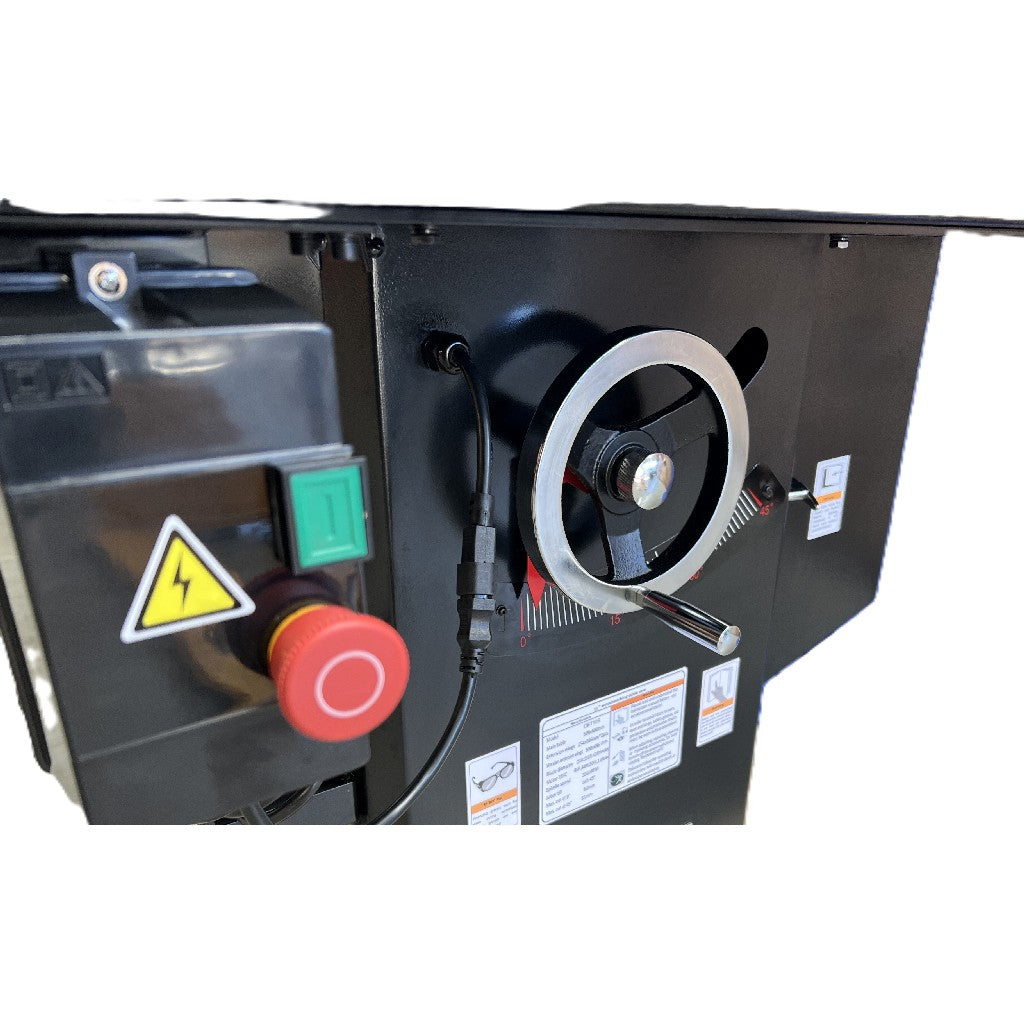

| Switch | Magnetic no Volt + Emergency Stop With overload Safety |
| Worktable height | 875mm |
| Worktable size | 1320x686mm/1829x686mm |
| Machine Weight | 225kg/282kg |
