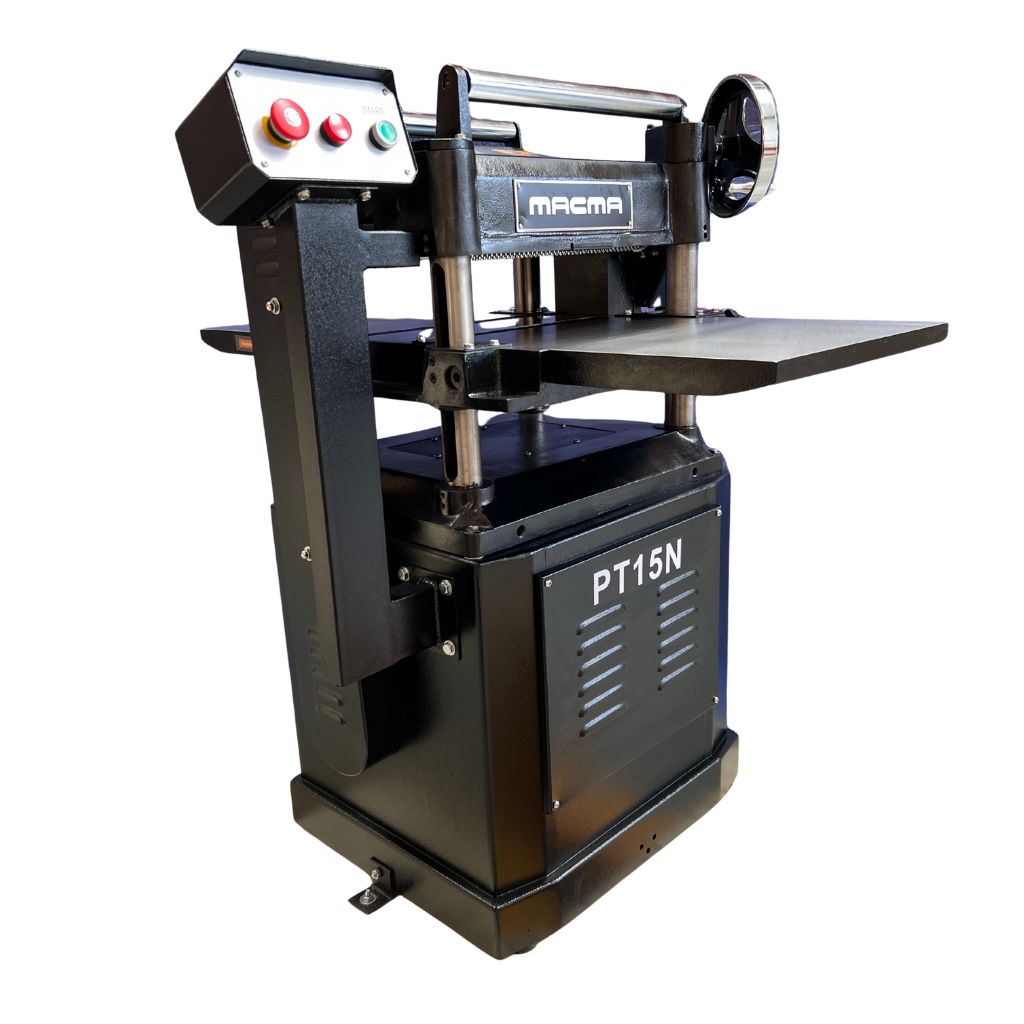

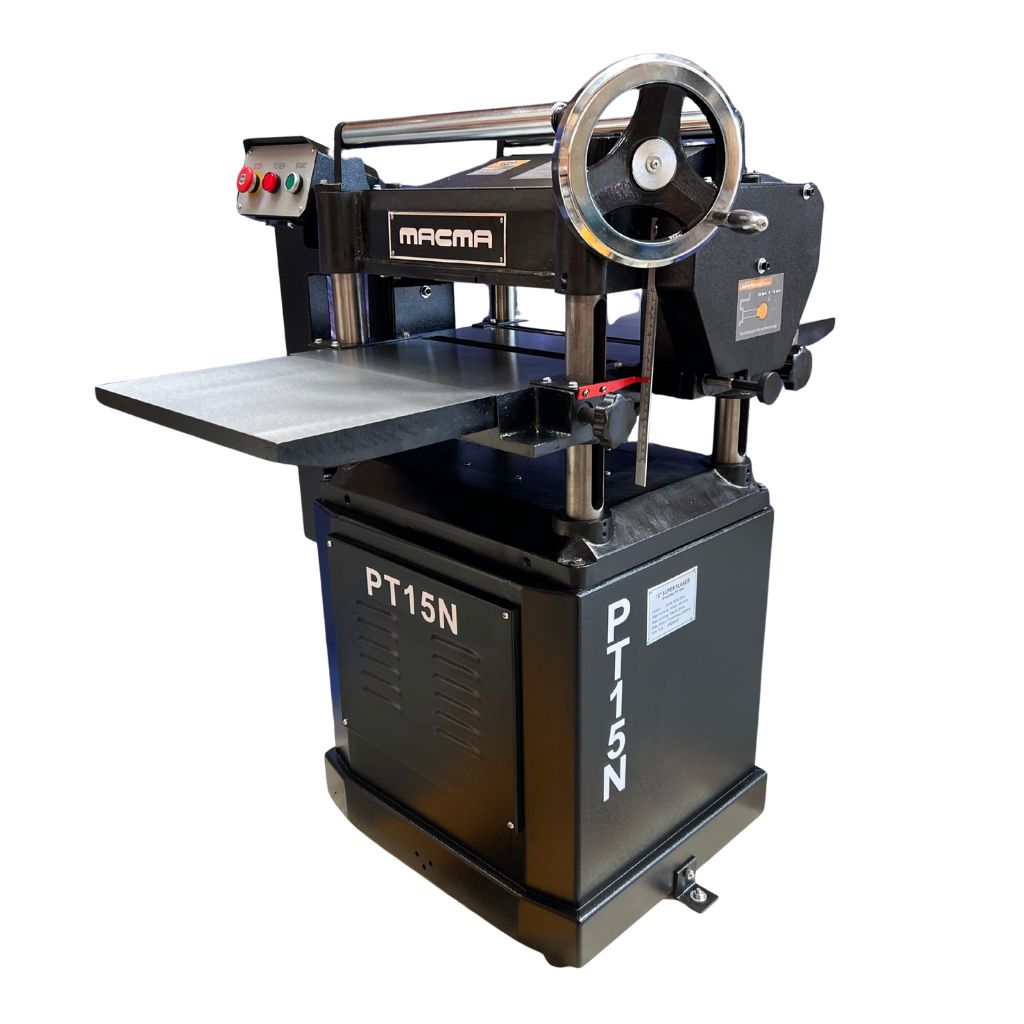

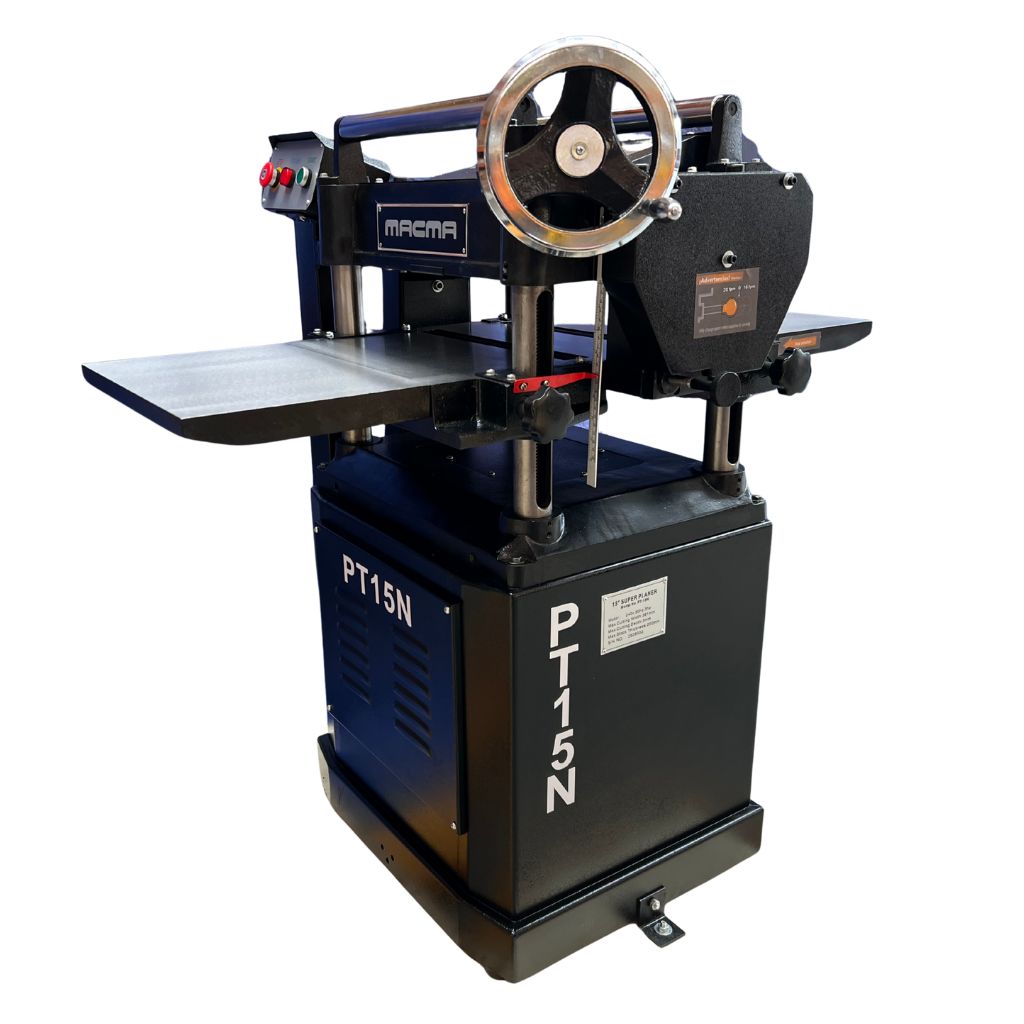

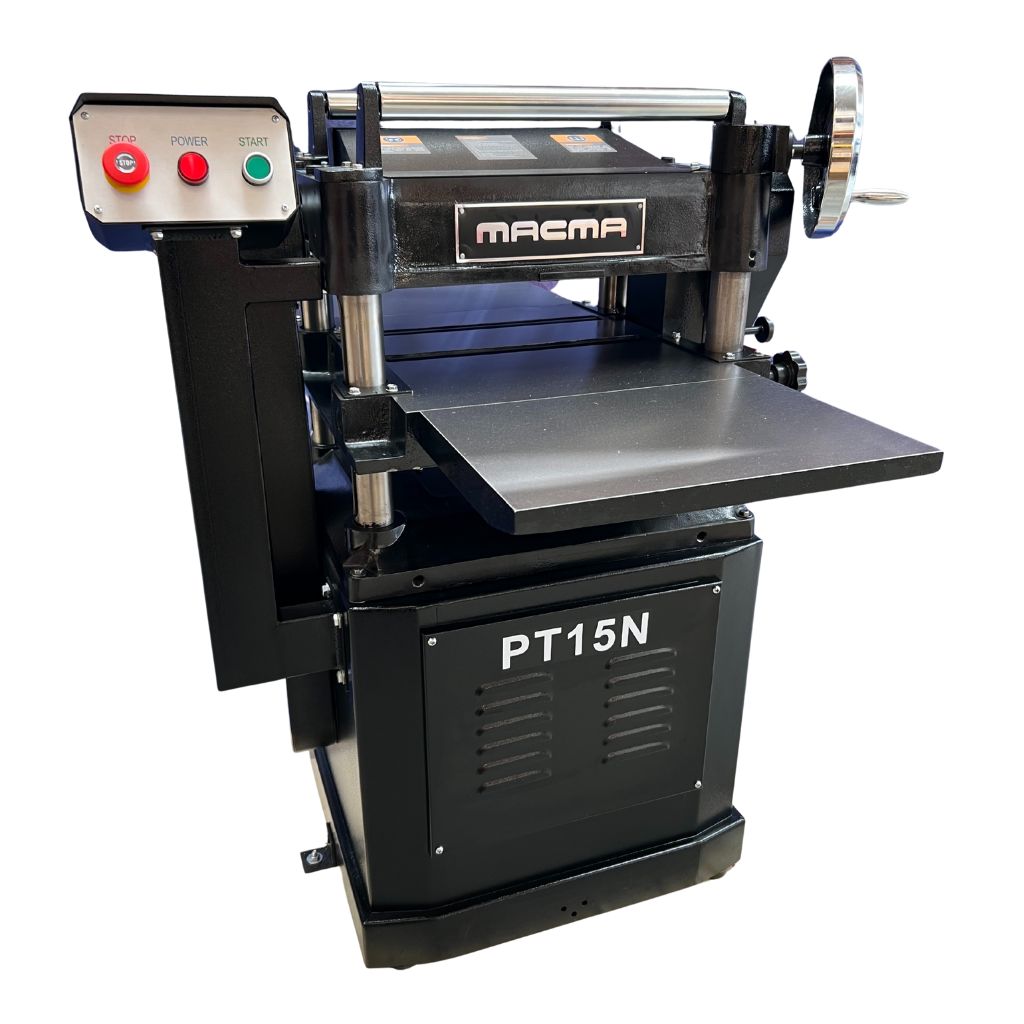

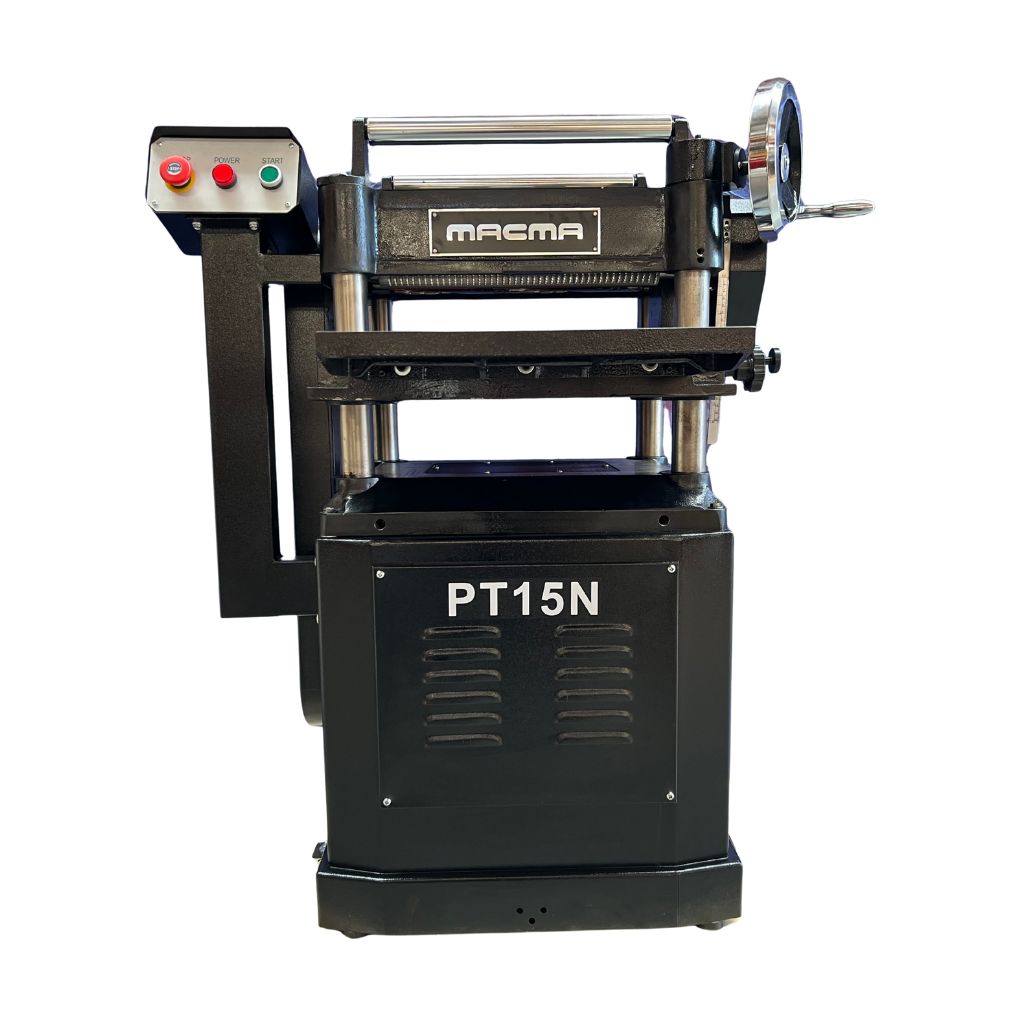

PT15N-SPIRAL 15" thicknesser Spiral cutterhead 3HP

PT15N-SPIRAL 15" thicknesser Spiral cutterhead 3HP

SKU:PT15N-SPIRAL

常规价格 $0.00
常规价格 促销价 $0.00
促销 售罄
含税费。




15" 3 HP Thicknesser with Spiral Head

Upgrade your woodworking setup with our robust 15" thicknesser, powered by a 3 HP motor for efficient and powerful performance. Featuring a premium spiral head technology, it ensures smooth, vibration-free operation and a high-quality finish on all projects. The triple V-belt drive provides enhanced durability and reliability, while the cast iron hand wheels and solid cast iron wings offer exceptional stability and control. Equipped with bed return rollers and a two-speed automatic board feed, this thicknesser simplifies each cut, saving you time and effort. The long-lasting carbide tips can be turned three times, extending the tool’s lifespan and maintaining peak performance. Perfect for professional workshops and serious hobbyists alike.

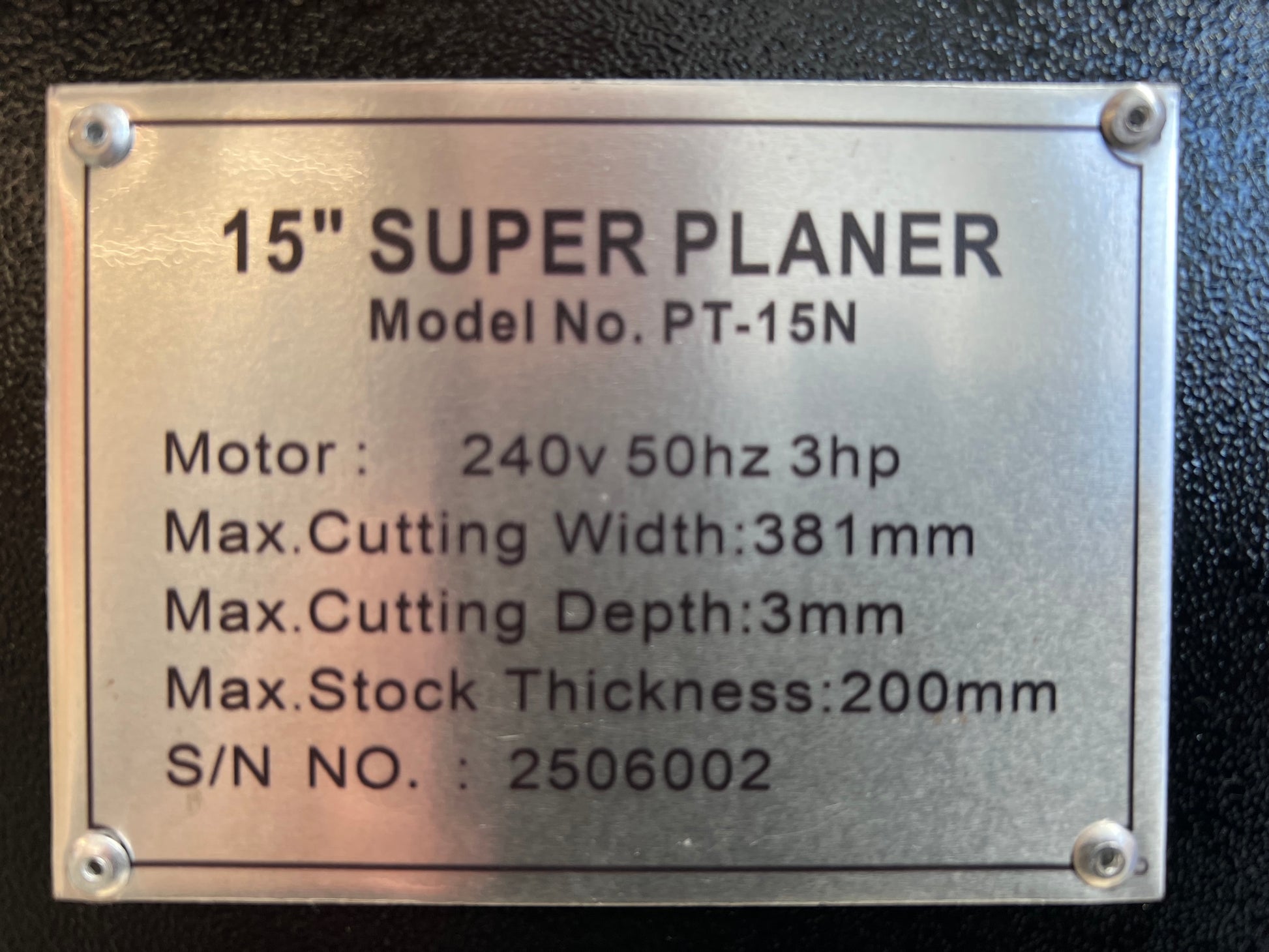

SPECIFICATIONS:

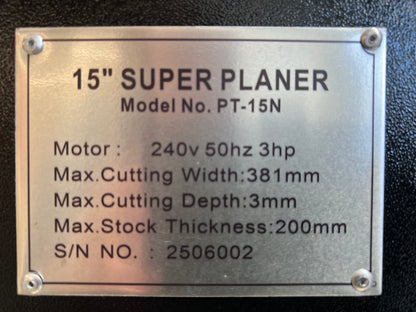

  • Motor: 3.0 HP, 230V, single-phase,
  • Maximum stock width: 15"  381mm
  • Maximum stock thickness: 8"   203mm
  • Minimum stock thickness: 3/16"   5mm
  • Minimum stock length: 8"   203mm
  • Maximum cutting depth: 1/8"   3mm

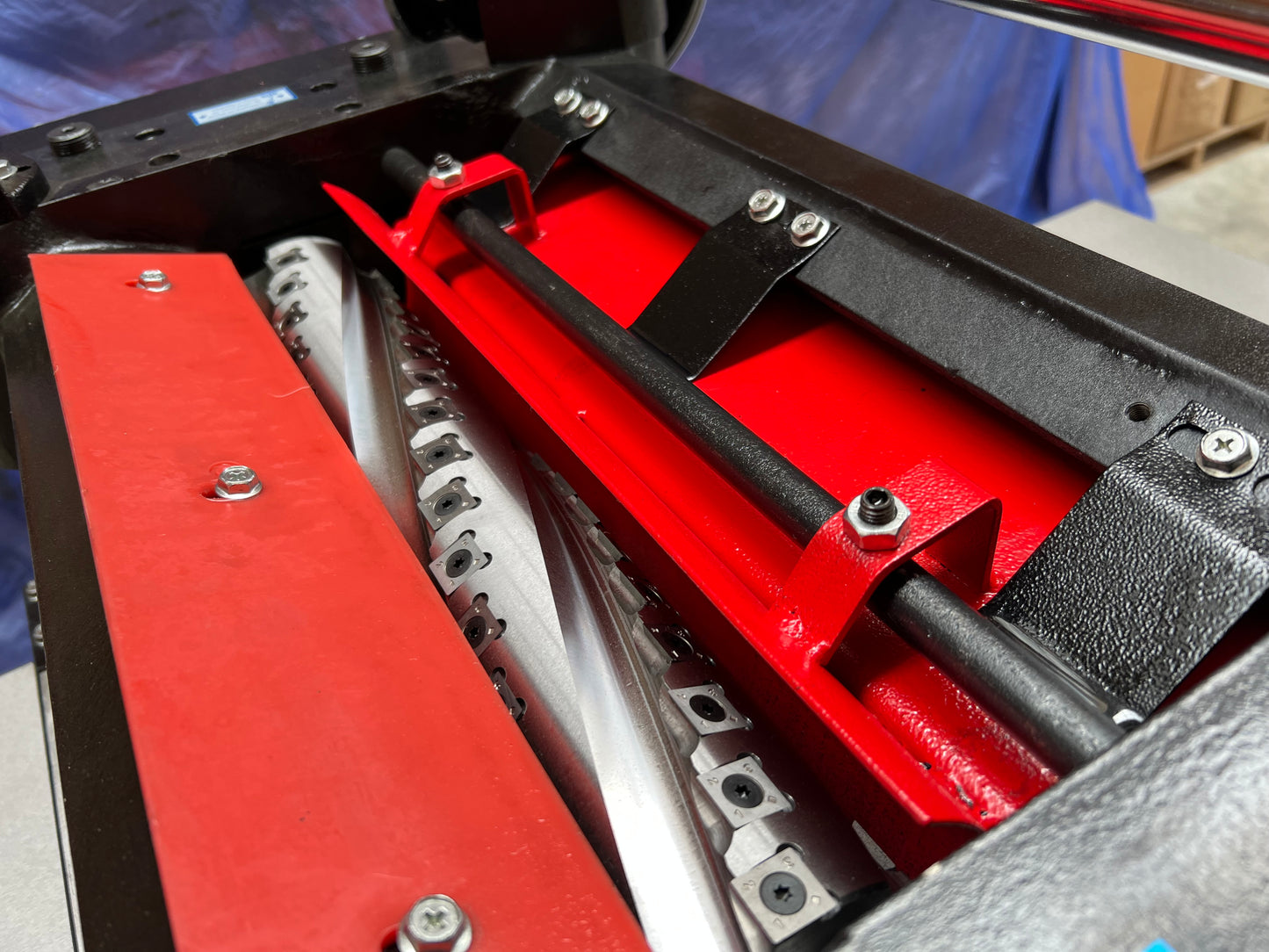

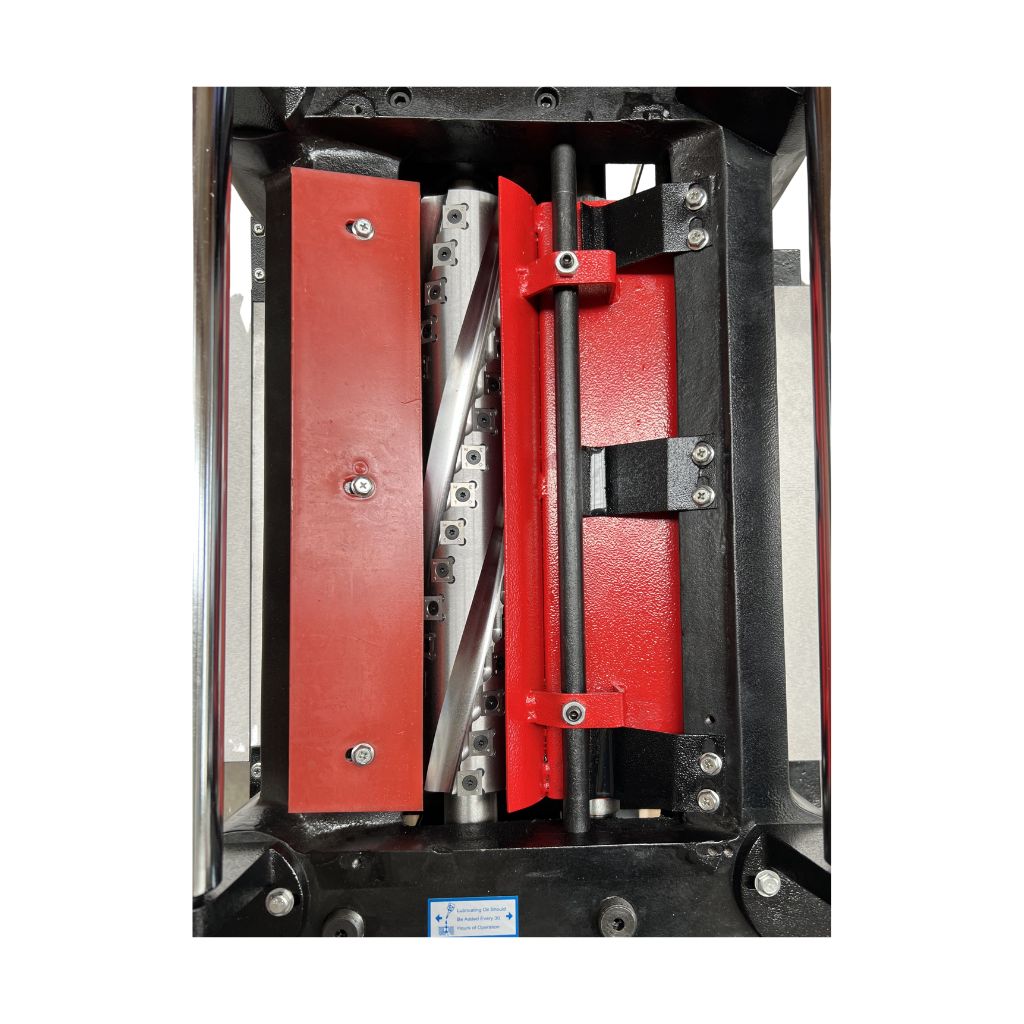

  • Cutterhead type: 4-Row spiral, 64 inserts
  • Cutterhead speed: 4800 RPM
  • Feed rate: 16, 28 FPM  5M/9M m/min
  • Table size: 15" x 42-1/2"
  • Dust port size: 4"
  • Overall dimensions: 94cm W x 107cm D x 115cm H
  • Approximate shipping weight:  290kg

FEATURES:

  • Two-speed automatic board feed

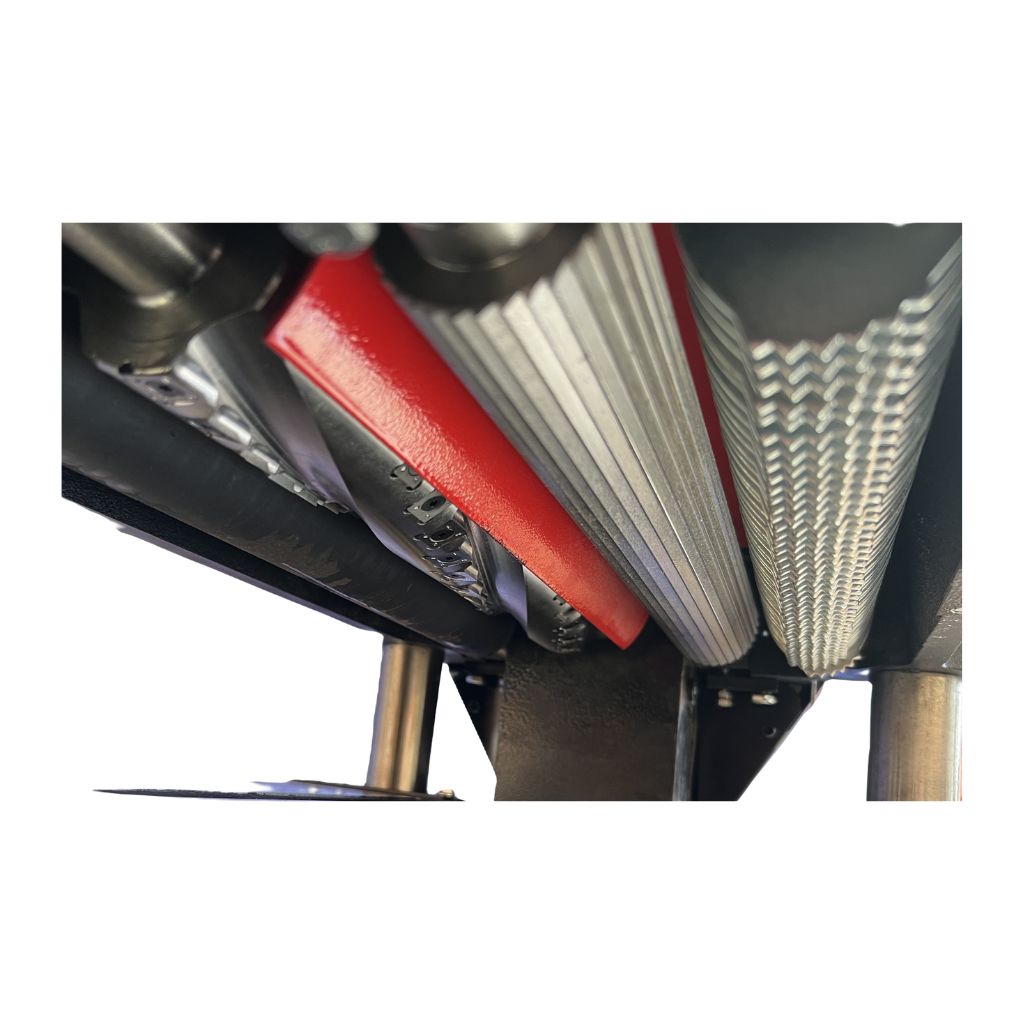

  • Two adjustable bed rollers and board return rollers
  • Built-in mobile base
  • Heavy-duty cast-iron handwheel depth adjustment
  • Precision-ground, cast-iron table and extension wing

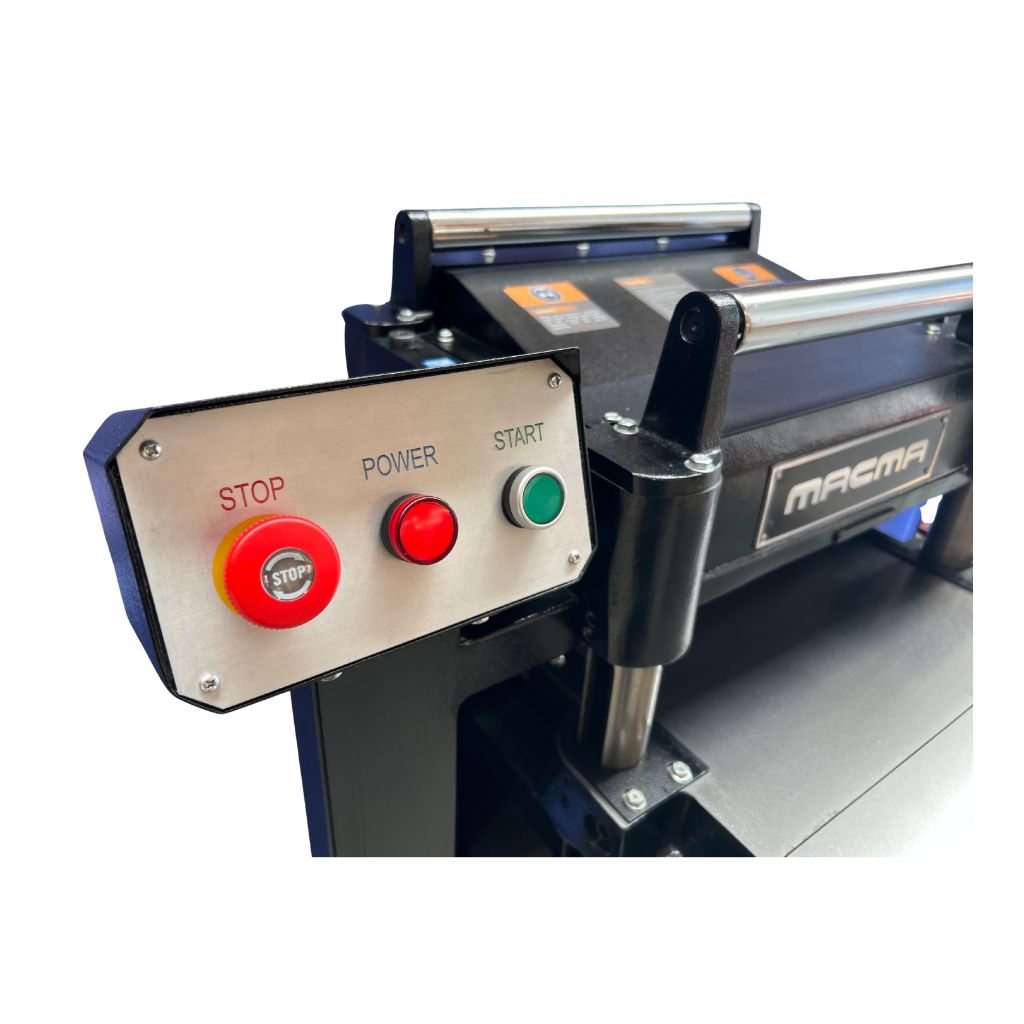

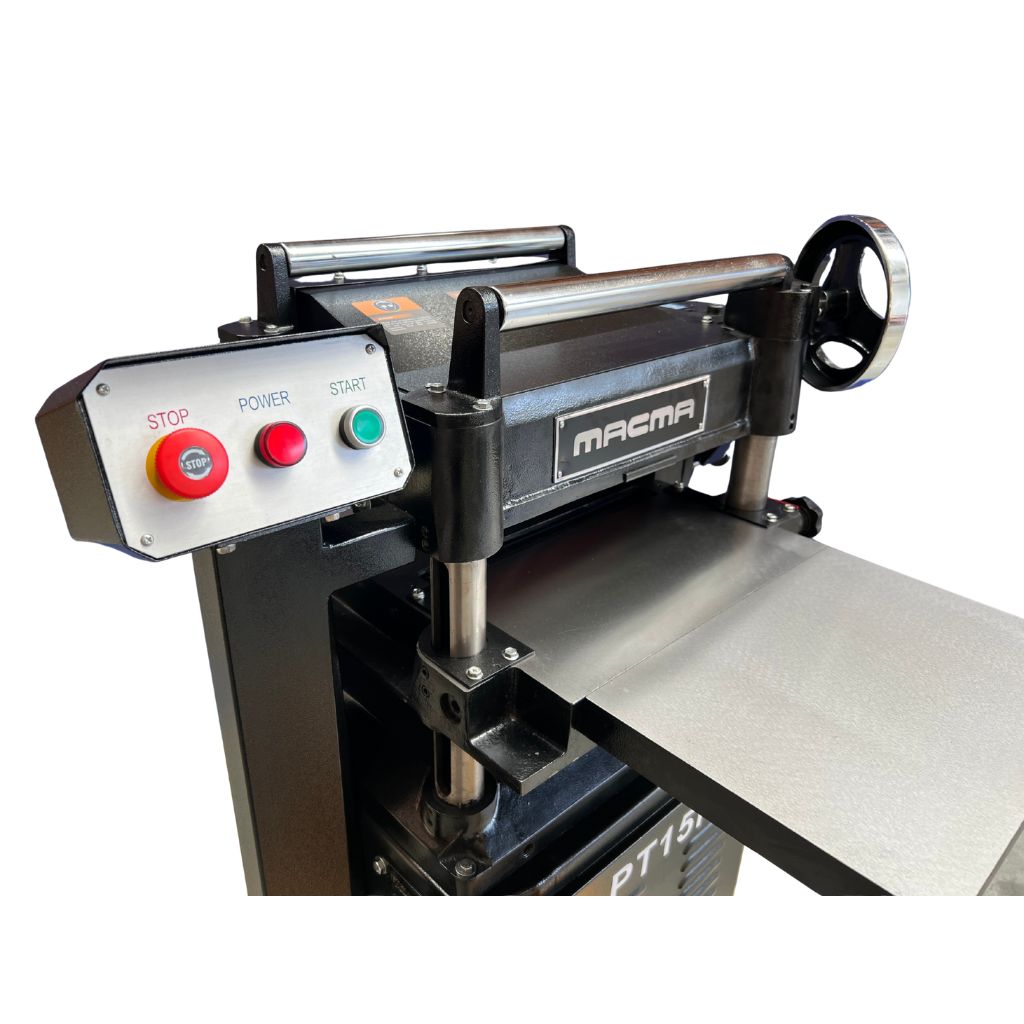

  • Pedestal-mounted control panel
  • Four-column support with table locks
